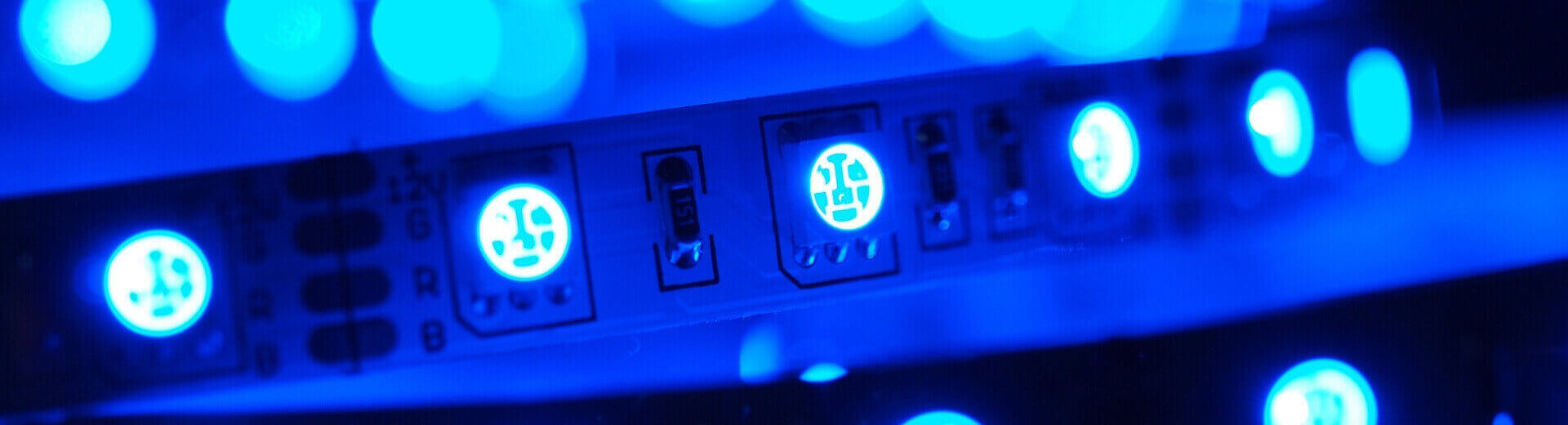

Individually Addressable LED Strip From The Best And Trusted Manufacturer in China
Individually addressable LED strips come in a long strip depending on the length of the strip light. Each LED is independent and contains an individual circuit. So the individually addressed LED strip can be cut at any point, others are not affected. You should know that our design allows any point on the individually addressed LED strip to serve as the starting point.
For electrical contractors, SDIP provides you with engineers for site audit to assess the project site and offer initial ideas on the project. You also get access to layout design, lighting effect, programming, and debugging based on LedEdit or Madrix software platforms services. Our field engineers propose the ideas regarding lighting effect, design, programming, and on-site installation. As part of our extensive service, you can request for product development based on custom needs.
In application, the strip lights are built flexibly for use on many types of surfaces. It bends well and has connectors at two ends that hook without soldering. If you are purchasing large quantities as a wholesaler, electrical contractor, or company, you are in the right place. You can purchase LED strips individually addressable in hundreds and thousands of quantities for bulk purchase. You’ll enjoy fast and flexible delivery timeline.
Contact us today to ask for a quote
Best Individually Addressable LED Strip
Individually Addressable LED Strip
LED Strip Individually Addressable
Single Addressable LED Strip
RGB Individually Addressable LED Strip
Individually Addressable WS2813 LED Strip
More Than an individually addressable LED strip Manufacturer in China, SDIP is also a premier worldwide Supplier
Anywhere in the world where you run a lighting business, SDIP supplies your orders. We work with individual contractors and technological companies. We supply LED strip individually addressable lights to companies manufacturing toys and other gears. They trust our quality enough to add the LED lights to their technological designs.
The RGB individually addressable LED strip you are to purchase produces different shades of color. More particularly, each LED unit is built to produce individual colors. This means a strip can have a uniform color or different color at each unit. It has an array of applications in outdoor decor, LED screen decoration, and interior decor.
Added to the flexibility, there is an adhesive to attach the individually addressable RGB LED strip on surfaces. You must likewise know that the strip is connectable to form longer designs. The brightness for each LED unit is controllable and with a sharp color pixel. With the adjustable lighting system, the LED light strip individually addressable is an excellent option for home use and commercial centers.
As you look to order bulk units of the best individually addressable LED strips, be assured of high quality. We have over 10 years of experience in LED lighting. All your orders are delivered promptly and accurately with no defect. We understand the importance of punctual delivery and we give you just that!
Contact us today!
Model | SDIP-F5V-30L-30LED-W-WS2812 | SDIP-F5V-60L-60LED-W-WS2812 | SDIP-F5V-144L-144LED-W-WS2812 |
Voltage: | DC5V | DC5V | DC5V |
Current: | 0.06A/LED | 0.06A/LED | 0.06A/LED |
Max Power: | 9w/m | 18w/m | 43.2w/m |
IC Type: | Built-in | Built-in | Built-in |
IC: | WS2812B | WS2812B | WS2812B |
IC Quantity: | 30 IC/meter | 60 IC/meter | 144 IC/meter |
LED Type: | SMD5050 | SMD5050 | SMD5050 |
LED Quantity: | 30 LEDs/meter | 60 LEDs/meter | 144 LEDs/meter |
LED Color: | RGB | RGB | RGB |
LED Interval: | 33.3mm | 16.6mm | 16.6mm |
Cut Size: | 1 x LED | 1 x LED | 1 x LED |
LED Lifespan: | 50,000hrs | 50,000hrs | 50,000hrs |
PCB Width: | 10mm | 10mm | 10mm |
FPCB Thickness: | 3A copper | 3A copper | 3A copper |
PCB: | Double-sided Flexible PCB | Double-sided Flexible PCB | Double-sided Flexible PCB |
FPCB Color: | White/Black | White/Black | White/Black |
Channel Order: | RGB | RGB | RGB |
Gray Scale: | 256 | 256 | 256 |
IP rate: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
Working Temp: | -40°~ 70° | -40°~ 70° | -40°~ 70° |
Roll length: | 5m/Roll | 5m/Roll | 5m/Roll |
Package: | Anti-static Aluminum Foil Bag | Anti-static Aluminum Foil Bag | Anti-static Aluminum Foil Bag |
Model | SDIP-F5V-30L-30LED-W-WS2813 | SDIP-F5V-60L-60LED-W-WS2813 | SDIP-F5V-144L-144LED-W-WS2813 |
Voltage: | DC5V | DC5V | DC5V |
Current: | 0.06A/LED | 0.06A/LED | 0.06A/LED |
Max Power: | 9w/m | 18w/m | 43.2w/m |
IC Type: | Built-in | Built-in | Built-in |
IC: | WS2813 | WS2813 | WS2813 |
IC Quantity: | 30 IC/meter | 60 IC/meter | 144 IC/meter |
LED Type: | SMD5050 | SMD5050 | SMD5050 |
LED Quantity: | 30 LEDs/meter | 60 LEDs/meter | 144 LEDs/meter |
LED Color: | RGB | RGB | RGB |
LED Interval: | 33.3mm | 16.6mm | 16.6mm |
Cut Size: | 1 x LED | 1 x LED | 1 x LED |
LED Lifespan: | 50,000hrs | 50,000hrs | 50,000hrs |
PCB Width: | 10mm | 10mm | 10mm |
FPCB Thickness: | 3A copper | 3A copper | 3A copper |
PCB: | Double-sided Flexible PCB | Double-sided Flexible PCB | Double-sided Flexible PCB |
FPCB Color: | White/Black | White/Black | White/Black |
Channel Order: | RGB | RGB | RGB |
Gray Scale: | 256 | 256 | 256 |
IP rate: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
Working Temp: | -40°~ 70° | -40°~ 70° | -40°~ 70° |
Roll length: | 5m/Roll | 5m/Roll | 5m/Roll |
Package: | Anti-static Aluminum Foil Bag | Anti-static Aluminum Foil Bag | Anti-static Aluminum Foil Bag |
-
Individually Addressable LED Strip For Stage
-
Individually Addressable LED Strip For Bar
-
Individually Addressable LED Strip For Commercial Lighting
-
Individually Addressable LED Strip For Festival Decoration
-
Individually Addressable LED Strip For Hotel
-
Individually Addressable LED Strip For Tunnel Decoration
Individually Addressable LED Strip Related Products
Power Supply For Individually Addressable LED Strip
Diver for Individually Addressable LED Strip
Controller For Individually Addressable LED Strip
SDIP: Top Quality Single Addressable LED Strip Manufacturer in China
You see, one of many benefits of purchasing our LED light strip that is individually addressable is the warranty. You get an offer of 12-18 months warranty on each single addressable LED strip we deliver to you. All materials used in the production of the individually addressable LED strip are safe and environmentally friendly. All have the CE & ROHS certifications.
You get market-friendly prices and great quality. All day, any day, our customer service is always on hand to attend to your inquiries.
Visit our online store today to obtain the best individually addressable LED strips
The Ultimate FAQ Guide – Individually Addressable LED Strip
Individually addressable LED strip is one kind of addressable LED strip. This LED product is the one that has the ability to control its colors and brightness. This is the reason these are called individually addressable LED strips as each LED can individually control its properties. Due to such interesting properties, individually addressable LED strips are becoming more popular.
- What is an LED Strip?
- What are addressable LEDs?
- What is Meant By an Addressable LED Strip?
- What is Meant by an Individually Addressable LED Strip?
- How do you control the led strip individually addressable?
- How do RGB individually addressable LED strips work??
- How do you power individually addressable rgb led strips?
- How can you install LED light strips individually addressable?
- How do you use the best individually addressable LED strip?
- How do you connect a single addressable LED strip?
- Do you need a lot of electricity while using an individually addressed led strip?
- Is it necessary to take Safety measures while Connecting an individually addressable LED strip?
- How can You reduce the Current usage of an individually addressable LED strip?
- Is it possible to cut an RGB individually addressable LED strip?
- Can I bend my individually addressable RGB LED strip?
- How much cost do I need to buy a LED light strip individually addressable?
- How bright can be a best individually addressable LED strip
- Can a single addressable LED strip cause me cancer?
- What is the Best way to Choose a controller for an individually addressable led strip?
- Can I control multiple LED strips with one remote?
- Is it necessary to use a Transformer for your LED strip individually addressable?
- How can you figure out if an RGB individually addressable LED strip is burnt Out?
- How to use individually addressable led strips with Arduino?
- What is the Difference between an addressable LED strip and an Addressable LED Bar?
- Are there any chances of catching Fire for the individually addressable rgb led strip?
- Do bugs find it attractive to fly near the led light strip individually addressable?
- Can I sync my best individually addressable led strip to Music?
- Can I program RGB individually addressable led strips?
- In which way can I program my single addressable led strip?
- What can be the length of my individually addressed led strip?
- What is the difference between a Rigid individually addressed led strip and a Flexible individually addressed led strip?
- What’s the difference between WS2812, WS2813, WS2815?
- How do you make yellow with an individually addressable rgb led strip?
- How do you make rose gold with led light strips individually addressable?
- How do you make hot pink with best individually addressable led strip
- How many LED strips can I connect together?
- Can you keep an individually addressed led strip all night?
1. What Is An LED Strip?
LED Strips are also known as ribbon lights or tape lights.
In simple words, You can say that a flexible circuit board is populated by surface mounted light emitting diodes.
These LED strips usually contain adhesive backing with them.
LED strips are the most popular products being used these days.
You can use them for decorating your home, rooms, stages etc.
It has wide applications in task lighting, back lighting, accent lighting and decoration lighting.
You can also stick them to various objects like television, cupboard, drawers, tables etc.
These LED strips can creatively enhance the beauty of your surroundings.
What is an LED strip
2. What Are Addressable LEDs?
An addressable LED is the one having an integrated driver attached with it.
The integrated driver allows the LED to control its brightness and color.
This property is what makes it addressable.
Addressable LEDs are available in three different voltage categories.
These three categories are 5V, 12V and 24V.
Here is a simple video that can give you more idea about the addressable LEDs :
3. What Is Meant By An Addressable LED Strip?
An addressable LED strip is the LED strip made of addressable LEDs.
It means that you can change the color of LEDs that are mounted in an Addressable LED strip.
There is an integrated driver that has the capability to control the color as well as brightness of the LEDs in the addressable LED strip.
In an addressable LED strip, the whole strip is capable of strobing, chasing, and colour changing.
4. What Is Meant By An Individually Addressable LED Strip?
An individually addressable LED strip is another kind of addressable LED strip.
It works like an addressable LED strip but the only difference is that an individually addressable LED strip has LEDs and each LED has its own chip. It means they have an individually triggered property for strobing, chasing, and colour changing.
5. How Do You Control The LED Strip Individually?
You can control your LED strip individually addressable through a specific software.
You can also control your simple RGB addressable LEDs.
In order to control the LED strip individually, you need to buy a controller.
WS2812B is one of the latest versions of LED strips individually addressable.
You can watch this given simple and easy tutorial to know the controlling process of your LED strip individually addressable.
6. How Do RGB Individually Addressable LED Strip Work?
RGB individually addressable LED strips have a little microcontroller on every one of the LEDs.
This controller permits every LED to illuminate with remarkable shading and brilliance.
The strips have a positive voltage wire, a ground, and an information wire.
Each time the information arrives at a drive it is perused and passed down the strip to the following drive.
The first chip peruses the approaching location as LED0, and afterward plays out the guidelines for LED0, it likewise gives the information to the following chip in the wake of expanding the counter worth by 1.
As such, the principal LED says “OK, I’m LED0, the following person who gets this message is LED1”, this message proceeds down the strip until there are no more LEDS left.
The significant thing for you to know here is that each LED in the strip should be given explicit guidelines with their specific location..
7. How Do You Power Individually Addressable RGB LED Strips?
Individually addressable RGB led strips come in 5V and 12V, and each strip enjoys some interesting benefits.
12V LED strips are less powerless to voltage drop and are accordingly ready to travel longer distances before the LEDS become faint and the shadings become off base.
In the event that you are intending to run your strips through any significant distance, you’ll likely need to infuse power on each finish of the strip at any rate and presumably some place in the center also in case you’re utilizing the 5V assortment.
The potential gain to utilizing a 5V strip is that you’ll have the option to control your NodeMCU from a similar force source without utilizing a buck converter or some other voltage controller.
8. How Can You Install LED Light Strips Individually Addressable?
This video can be helpful if you are planning to install LED light strips individually addressable :
How to install Individually addressable LED strip
9. Can You Keep An Individually Addressed LED Strip On All Night?
It is totally fine if you want to keep an individually addressed LED strip on all night.
You will have to check if the quality of the individually addressed LED strip is good.
Buying it from a good manufacturer can give you a good quality for your strip.
Having a good quality leads to long term good results of the product.
In case you don’t buy an individually addressed LED strip from a good manufacturer, it may not be able to produce good results.
10. How Do You Use The Best Individually Addressable LED Strip?
Here is a simple video about installing and using the best individually addressable LED strip :
11. How Do You Connect A Single Addressable LED Strip?
Single addressable LED strips are becoming more and more popular these days.
You can individually control each LED in a single addressable LED strip.
This is the main advantage of a single addressable LED strip.
You can easily choose their color.
You can even choose their brightness and can make sure they are on or off whenever you want.
These creative techniques in a single addressable LED strip can let you do more cool things while connecting your single addressable LED strips.
In order to connect your single addressable LED strip, the first thing you need is a device to run the controller.
This device can be a MACbook, a PC or any other computer of your choice.
The second thing that you will be needing is a fastLED library.
You will also buy a micro controller.
You will have to buy a power supply depending upon the power of your single addressable LED strip.
A DC barrel connector will be required as well.
In this case, it can also be optional.
You will also buy some wires for power to the controller and data connection.
First of all you will connect the power supply to the controller.
And lastly you will be connecting your single LED strip to the controller.
This is the simplest of connecting a single addressable LED strip.
12. Do You Need A Lot Of Electricity While Using An Individually Addressed LED Strip?
Individually addressable LED strips are known for consuming the lowest power.
You can get the best output within very low voltage.
This is why individually addressable LED strips are becoming more and more popular these days.
At the same time, electricity usage may also depend upon the length and quality of your individually addressable LED strips.
Longer the length of your individually addressable LED strip, more will be the electricity consumption.
On the other hand, the better the quality, the less the electricity consumption.
If you buy your individually addressable LED strip from a good manufacturer, it may lead to lower consumption of electricity.
Keeping your individually addressable LED strip turn on for a long time period may also consume more electricity.
13. Is It Necessary To Take Safety Measures While Connecting An Individually Addressable LED Strip?
It is always necessary to use safety measures whenever you use any electrical product.
You should always take safety measures while connecting an individually addressable LED strip.
Although, individually addressable LED strips are considered as the safest to use still the safety measures are necessary.
You should always wear gloves while making the wire connections of your individually addressable LED strips.
You should wear plastic shoes while connecting your addressable LED strips.
These safety instruments will help you avoid the current exchange between the ground , the product and your body.
Safety for Individually addressable LED strip
14. How Can You Reduce The Current Usage Of An Individually Addressable LED Strip?
Current usage of an individually addressable LED strip can be controlled depending upon the color of LEDs, length of LED strip and quality of an individually addressable LED strip.
There are few colors that consume high power voltage for any individually addressable LED strip.
Longer the length of an individually addressable LED strip, higher will be the power consumption for the strip.
Having a short length of strip will lower the power consumption.
Individually addressable LED strips are known for giving the best output within low current usage.
If the quality of an individually addressable LED strip is not good enough then there may be higher power consumption.
You should buy your individually addressable LED strip from a good manufacturer.
15. Is It Possible To Cut An RGB Individually Addressable LED Strip?
Yes. It is possible to cut your RGB individually addressable LED strip.
It becomes easier for you when the RGB individually addressable LED strip is flexible.
A flexible RGB individually addressable LED strip is easy to cut and bend into whatever position you want.
On the other hand, if your RGB individually addressable LED strip is rigid then cutting it may cause problems.
You may destroy the structure of your RGB individually addressable LED strip if it is rigid.
Cutting your Individually addressable LED strip
16. Can I Bend My Individually Addressable RGB LED Strip?
You can bend your individually addressable LED strip only when it is flexible.
A flexible individually addressable RGB LED strip is easy to cut and bend.
In case you buy a rigid individually addressable LED strip, then it will become hard for you to bend it into desired position.
17. How Much Cost Do I Need To Buy An LED Light Strip Individually Addressable?
You have to keep in mind the quality and length of your LED light strip individually addressable.
The cost of LED light strips individually addressable actually depends on the quality and length.
Buying cheap products are low cost but they are low quality.
They cannot produce good results.
On the other hand, buying a better quality LED light strip individually addressable can have higher cost but a better quality.
Longer the length of your LED light strip individually addressable, higher will be the cost.
Normally, the cost of LED light strips individually addressable ranges between $3 to $10 per meter..
18. How Bright Can Be A Best Individually Addressable LED Strip?
Brightness of your best individually addressable LED strip may vary.
For some cases you want more brightness while some cases less brightness.
In case of accent lighting, you don’t need more than 200 lumens per foot.
On the other hand, if you are using your best individually addressable LED strip for decoration or stage lighting purposes, then it may require more lumen and more brightness.
Brightness of Individually addressable LED strip
19. Can A Single Addressable LED Strip Cause Me Cancer?
No single addressable LED strips can cause you cancer in any way.
There are no cases reported to cause cancer through a single addressable LED strip.
These single addressable LED strips are all safe to use.
They don’t even produce ultraviolet radiation.
Therefore they may not have chances of causing cancer.
Green LEDs are good for health as green is a calming color.
At the same time, yellow is known as a more popular color for treating mental health issues.
You can use them safely without thinking of any side effects related to cancer.
The investigation from ISGlobal and including the University of Exeter found that members living in enormous urban communities with hefty openness to LED lighting around evening time had twofold the danger of prostate cancer and 1.5 occasions higher danger of breast cancer.
20. What Is The Best Way To Choose A Controller For An Individually Addressable LED Strip?
The best way to choose a controller for an individually addressable LED strip is explained in the given video :
21. Can I Control Multiple LED Strips With One Remote?
Yes. A single remote is capable of controlling multiple addressable LED strips.
Remotes are popular devices to control multiple receivers easily.
You have to connect the given power supply with the remote.
At the same time, you need to connect the receiver with your addressable LED strips.
Hold the “on” button for five seconds and wait for the flash to be turned on.
You have to repeat this step multiple times to match with the receiver.
If it runs successfully, it shows that your remote has started functioning successfully with one remote.
22. Is It Necessary To Use A Transformer For Your LED Strip Individually Addressable?
It is one of the most commonly asked questions for LED strips individually addressable.
First of all, it is necessary to note that your LED strip is individually addressable and needs an LED transformer to run.
It is because when you wiring them to the main power supply then they may have significantly lower voltage.
The transformer that you will be choosing for your LED strip individually addressable, depends upon a few things.
These few things can be the length of your LED strip individually addressable.
It will also be dependent upon total wattage as well as watts per chip of your LED strip individually addressable.
For a 60 little chip size, you will have to calculate 5 watts for every meter.
For a 120 chip size, you have to calculate 10 watts for each meter.
For 60 huge chips, you will have to 15 watts for every meter
You will have to add another 20% in order to avoid a potential overload.
E.g 5 meters of 60 little chips needs a 30W LED transformer
If it’s not too much trouble, ensure you check the number of chips per meter the LED strip individually addressable you need has, and whether those chips are enormous or little.
Transformer for Individually addressable LED strip
23. How Can You Figure Out If An RGB Individually Addressable LED Strip Is Burnt Out?
It is very simple to figure out if your RGB individually addressable LED strip is burnt out or not.
You just have to connect it to the power supply and turn on the button.
If your RGB individually addressable LED strip is lighting properly, then it doesn’t have any problem.
If it is working properly, it is not burnt out.
On the other hand, if you turn on the power button after making the connection and it doesn’t light up, it shows that your RGB individually addressable LED strip is burnt out.
Watch out the give video :
24. How To Use Individually Addressable LED Strips With Arduino?
Here is a best video tutorial to guide you about using your individually addressable LED strips with Arduino :
25. What Is The Difference Between An Addressable LED Strip And An Addressable LED Bar?
An addressable LED strip is the one that may have LEDs mounted on any PCB.
On the other hand, an addressable LED bar can be similar to a tube light because it has hard casing over the addressable LED strip.
The following images below can clearly tell the difference between an addressable LED strip and an addressable LED bar.
Individually addressable LED strip
Individually addressable LED Bar
26. Are There Any Chances Of Catching Fire For The Individually Addressable RGB LED Strip?
You can never say that an individually addressable RGB LED strip is not safe to use.
It cannot harm you in any way.
Your individually addressable RGB LED strip doesn’t emit harmful radiations like UV radiations.
It is all safe to use even if you turn them on for a whole night.
It cannot catch fire if the quality of your individually addressable RGB LED strip is good.
Cheap products expire quickly.
Cheap products have chances of catching fire as well.
Therefore you should buy your Addressable LED strip from a good manufacturer.
27. Do Bugs Find It Attractive To Fly Near The LED Light Strip Individually Addressable?
LED light strips individually addressable can cause the bugs to fly towards them.
These LED strips can draw in pretty much bugs when contrasted with radiant lights.
Researchers confirmed that around 20,000 bugs can be pulled into LED lights.
There are nighttime bugs pulled in towards LED strips.
They think about these lights as evening glow.
Researchers additionally said that a draw out of bugs towards your LED light strips individually addressable can upset normal environments just as natural pecking orders.
As the majority of the creatures rely upon bugs for food.
This issue can be diminished by picking a shading that can draw in less bugs towards LED light strips individually addressable.
28. Can I Sync My Best Individually Addressable LED Strip To Music?
Individually addressable LED strips can be the best thing to be synced with music.
It can make your environment look more attractive.
29. In Which Way Can I Program My Single Addressable LED Strip?
RGB individually addressable LED strips can be programmed easily.
Here is the link to the programming guidance of your single addressable LED strip:
30. What Can Be The Length Of My Individually Addressed LED Strip?
Length of your individually addressable LED strip can vary.
It varies on the basis of your purpose to use your individually addressable LED strip.
Individually addressable LED strips are ordinarily fabricated in 5m reels, as this is generally the greatest length you can introduce in one persistent length without getting a voltage drop towards the finish of the reel.
Any more, and the LEDs toward the finish of the reel show up less splendid than those near the power supply.
31. What Is The Difference Between A Rigid Individually Addressed LED Strip And A Flexible Individually Addressed LED Strip?
The difference between a rigid individually addressable led strip and a flexible individually addressable led strip is obvious from their names.
A rigid individually addressable led strip is like a hard strip.
You cannot use it easily at irregular places because of the rigidity factor.
You cannot bend your rigid individually addressable led strip into whatever position you want.
On the other hand, a flexible individually addressable led strip is ideal to be used at irregular places.
You can bend it into your favorite position.
You can even cut your Flexible individually addressable led strip.
32. What’s The Difference Between WS2812, WS2813, WS2815?
WS2813, WS2812 and WS2815 are the best and latest versions of individually addressable LED strips.
There are few differences among them that are making them beneficial over one another.
Here is the video link towards identifying the differences between them :
33. How Do You Make Yellow With An Individually Addressable RGB LED Strip?
Changing the color of your individually addressable RGB LED strip is quite easy if you know the tricks.
You can change it to yellow color by this simple tutorial :
34. How Do You Make Rose Gold With LED Light Strips Individually Addressable?
There may be cases when you want to make your LED light strips individually addressable look more attractive and satisfying.
Here you will be choosing a color of your choice.
You can make rose gold with LED light strips individually addressable through the given link :
Rose Gold Individually addressable LED strip
35. How Do You Make Hot Pink With The Best Individually Addressable LED Strip?
The Best Individually addressable LED strips can become more useful if you can creatively turn them into your desired color.
You can watch the given video to make your best individually addressable LED strip hot pink :
36. How Many LED Strips Can I Connect Together?
Basically, It is reliable to connect only two LED strips together.
It has been figured out by manufacturers that you should not connect more than two LED strips together end to end.
At the same time, if it is still required to connect more than two LED strips, you can still achieve it.
A separate power bus is needed to connect more than two LED strips together.
The separate power bus should have higher gauge wire.
It will help the strips to run down the line.
It will also help to add additional power supplies down the line.
This is the way you can achieve connecting multiple LED strips together
