​Industry Leading Rigid LED Light Strip Manufacturer and Supplier in China

SDIP invites wholesalers, electrical contractors, and lighting companies to purchase rigid LED light strips in large quantities for use in kitchen lighting,  under-cabinet lighting, interior cabinet, and above-cabinet ambiance lighting alongside toe-kick accent lighting.

You can purchase rigid LED strips at any voltage of choice. It could be the 5v, 12v, 24v, 5~24V. As SDIP offers different working voltages, the LED rigid strip also comes in sizes like 28*42*1000mm, 28*33*990mm, 18*25*1000mm, and 23*19*1000mm. Note that you can also request customized sizes based on the need of your project. We produce based on your requirements.

Additionally, each rigid strip light is coated for water resistance. It has IP20, IP33, IP67 grades.

Visit our online store today to get a quote.

LED Bar Lighting Strips

12v Rigid LED Strip Light

LED Rigid Strip Light Bars

LED Rigid Strip Lights Kit

Rigid LED Light Strip

Rigid LED Strip

SDIP: The Best Supplier and distributor of Rigid LED light strip

As part of our top-quality services, we manufacture and deliver only the best rigid LED light strip to each of our clients. As you purchase in large quantities, you can be assured of similar quality on every piece delivered. For wholesalers especially, we have the LED rigid strip lights kit that contains all the necessary tools like solderless clamps and more. This allows for an easy installation process. For a large-scale installation done mostly by electrical contractors, we offer onsite services. Our field engineers have experience from different projects and therefore carry quality checks and can as well detect potential lighting challenges.

Additionally, you can get easy access to site audit, layout design, lighting effect, and programming based on LedEdit or Madrix software platforms. Also product development and implementation, Installation, and debugging as applicable.

LED strip bars are also included for use in the installation of rigid strips. The LED bar lighting strips have an accurate and universal dimension. The strips come with adhesives that make them easy to fix on surfaces. This allows for hassle-free mounting applications on the bars.

At SDIP, we only offer the best, and as such we give each of our customer’s warranty on all purchases. Our warranty stays active for 12-18 months after purchase.

Model SDIP-1825-LED BAR SDIP-2842-LED BAR SDIP-3033-LED BAR
Dimensions: 18*25*1000mm 28*42*1000mm 28*33*990mm
Voltage: DC5~24V DC5~24V DC5~24V
Max Power: 18W/12W 18W/12W 18W/12W
IC: WS2813/TM512 WS2813/TM512 WS2813/TM512
IC Quantity: 16/60 IC/meter 16/60 IC/meter 16/60 IC/meter
LED Type: SMD5050 RGB SMD5050 RGB SMD5050 RGB
LED Quantity: 48/60 LEDs/meter 48/60 LEDs/meter 48/60 LEDs/meter
Profile: Aluminium alloy Aluminium alloy Aluminium alloy
Cover: Tempered Glass 15mm Acrylic Tempered Glass
Signal Protocol: TTL/DMX512 TTL/DMX512 TTL/DMX512
Signal distance: 70m/30m 70m/30m 70m/30m
Anti-interference: Opto-isolator Opto-isolator Opto-isolator
Control Type: Individually addressable Individually addressable Individually addressable
Signal Protection: Break-point signal continuous transmission Break-point signal continuous transmission Break-point signal continuous transmission
Installation: Clips Clips Clips
IP rate: IP67 IP67 IP67
Working Temp: -50°~ 70° -50°~ 70° -50°~ 70°
Customized length: Supported Supported Supported

Rigid LED Light Strip Related Products



Controller For Rigid LED Light Strip

Driver For Rigid LED Light Strip

Power Suplly For Rigid LED Light Strip

SDIP: The Reputable Supplier of Top Quality Rigid LED Light Strip across Borders

Our delivery services are fast and flexible. Our delivery system beats common industry delivery timelines. We deliver 12v rigid LED strip light to many places and in any desired quantity.

Being LED, the strip lights give distinctly bright lights; it’s an indication of the hard work and research we put into.



The Ultimate FAQ Guide – Rigid LED Light Strip

Rigid LED strip is one of the kinds of LED strips. These strips are easy to use at regular places. LED rigid strip light bars cannot be used at irregular places just like flexible LED strips. You cannot bend rigid LED light strips into whatever position you want. The rigidity factor arises due to the aluminum profiling that is embedded on the rigid LED strip.

  1. What Is A Rigid LED Light Strip?
  2. Is It Possible to Connect two LED Bar Lighting Strips together?
  3. How Do You Connect LED rigid strip light bars Through The Help Of Soldering?
  4. How To Connect Two 12V Rigid LED Strip Lights Through the Help of Connectors?
  5. How Rigid is “Rigid Strip Light”?
  6. Is it Possible to bend Rigid LED Strip Light around corners?
  7. Is it Possible to cut an LED strip Bar?
  8. How do you hook up a LED Bar Lighting Strip?
  9. How do you connect two Rigid Strip Lights to one power source?
  10. How can you Select an appropriate LED Power Supply?
  11. How to power 12V Rigid LED Strip Light?
  12. How much power is required for an LED Rigid Strip?
  13. Can LED Bar Lighting Strip catch on fire?
  14. Is it Possible to Use LED Strip Bars without a Controller?
  15. Is it Possible to control multiple Rigid LED strips with one remote? If Yes, How?
  16. How bright can my Rigid LED Light Strip be?
  17. What is the process to Install my Rigid Strip Bar?
  18. Which color is best for my Rigid Strip Bar?
  19. How much an LED Rigid Strip can cost?
  20. Which Transformer is required for LED Rigid Strip?
  21. Can I leave a bendable 12v rigid led strip light on all night?
  22. Can a 12v rigid led strip light give you cancer?
  23. How many amps are required for the 12v rigid led strip light?
  24. Is it Possible to stick a 12v rigid led strip light to the TV?
  25. HOW LONG CAN rigid led light strip stay on?
  26. What is the best rigid led light strip?
  27. What wire can you use for your rigid led light strip?
  28. How do the led strip bars are connected to mains?
  29. Where should I place the led bar lighting strips in a room?
  30. How can you connect a rigid led strip to a 12V battery?
  31. Is it possible to power a 12V rigid strip light with a USB?
  32. Which Factors Should I Consider When Soldering and Clipping a LED Rigid Strip Lights Kit?

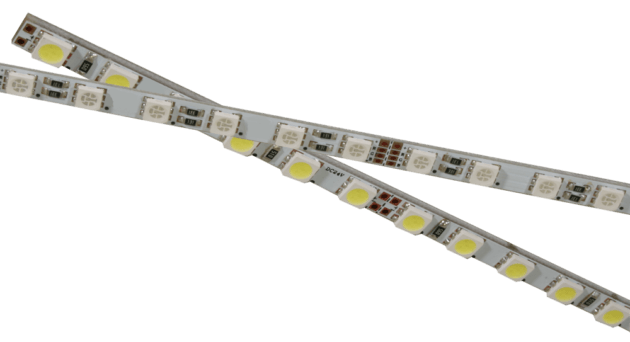

  33. How can you differentiate between a Rigid Strip Bar and a Flexible Strip Light?

1.    What Is A Rigid LED Light Strip?

It is a kind of LED strip that you cannot cut or bend.

You can connect rigid LED strips but their process is a bit complex as compared to a flexible LED strip.

Actually, PCB hardboards are assembled with the Rigid LED light strip.

One of the biggest disadvantages of a Rigid LED light strip is that these LED strips are not more suitable for irregular places.

The reason behind their rigidity is that these are mounted on an aluminum surface. Due to the fact that these LED strips are encrusted into a rigid profile, it makes them unable to behave flexibly.

Rigid LED STRIP Rigid LED Strip

2.    Is It Possible to Connect Two LED Bar Lighting Strips together?

Yes. You can connect multiple LED Bar Lighting strips together.

There are so many processes to connect LED Bar lighting strips but few of those processes are described in the video given below :



3.   How Do You Connect LED Rigid Strip Light Bars Through The Help Of Soldering?

It is not possible to connect your Rigid LED strip with the help of soldering. It is because of the rigidity factor that lies in the LED rigid strip lights kit. You can perform soldering only in case of flexible LED strips.

4.   How To Connect Two 12V Rigid LED Strip Lights with the help of Connectors?

12V Rigid LED Strip Lights can be connected easily through various processes.

There is a way to connect 12V Rigid LED Strip Lights.

This process of connecting 12V Rigid LED Strip Lights can be achieved through the help of connectors.

Connectors can help you to connect your LED Strip to any other LED strip.

It can also help you to connect your LED Strip to the power supply.

In either way, you can easily extend the distance of your LED strips to use them more effectively for different purposes.

Here is a simple and easy tutorial to give you awareness about how you should connect two 12V Rigid LED Strip lights through the help of connectors.

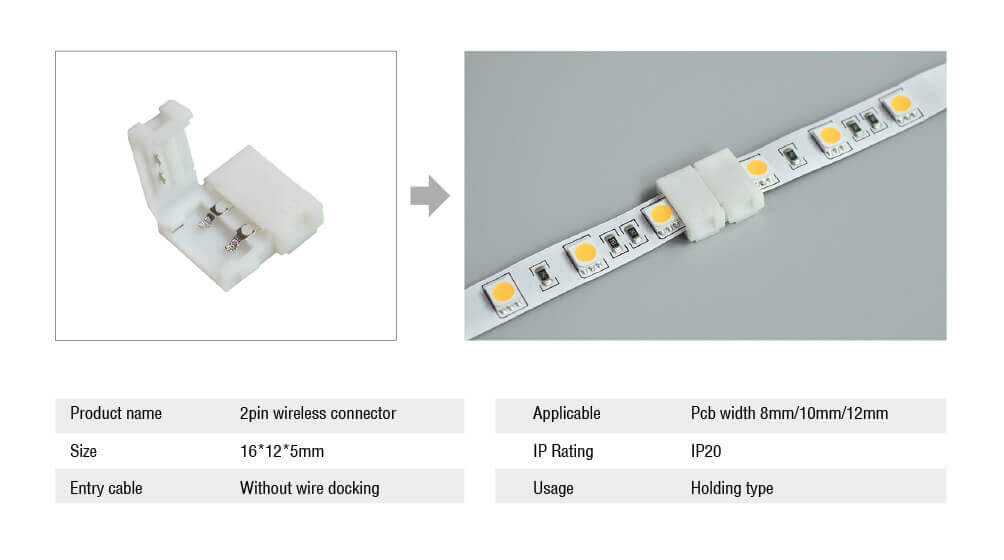

Rigid LED Strip connectorsConnecting Rigid LED strip

5.   How Rigid is “Rigid Strip Light”?

Rigid Strip lights are rigid to an extent that you cannot change them to your desired shape.

These LED strips are not flexible enough to be used in irregular places.

You can not bend or design them easily.

Rigid Strip lights are profiled into the aluminum casing which makes them unable to bend into the desired shape.

However, if there is some straight and regular place, then Rigid strip light can be your best choice.

6.   Is It Possible To Bend Rigid LED Strip Light Around Corners?

No. It is not possible to bend rigid LED strip lights around the corner.

This is actually one of the main characteristics of rigid LED strip lights.

You cannot bend it freely.

This is the reason that you cannot even use this rigid LED strip light at irregular places.

The reason behind the rigidity is that the strip is profiled into an aluminum casing that makes it unable to bend like a flexible LED strip light around the corners.

You can easily use a rigid LED strip light at regular and plane places.

Rigid LED strip lights can be fixed easily at such places.

7.   Is It Possible To Cut An LED Strip Bar?

No. It is not possible to cut an LED strip Bar from anywhere you want.

There is a small space in the half of a rigid LED strip Bar that is specified for cutting.

You can only cut the strip from this space.

If you cut from anywhere else then it will stop working.

It is one of the biggest disadvantages of a rigid LED strip bar that you cannot cut it into custom lengths.

It is not like a flexible strip that you can shape or cut into your desired shape or length.

Once you cut them from a specified space, you can also connect them with the help of connectors.

In case you cut the strip into custom lengths, it will not work for you as it will be damaged.

Cutting a rigid LED strip bar will stop the transmission of signals.

Cutting a Rigid LED stripCutting LED strip

8.   How Do You Hook Up An LED Bar Lighting Strip?

This video can be helpful for you if you want to hook up an LED Bar lighting strip :

9.    How Do You Connect Two Rigid Strip Lights To One Power source?

First of all, you will have to connect two rigid strip lights with the help of a hippo buckle connector.

A hippo buckle connector will make it easier for you to connect both the rigid strip lights to one power source.

It will also allow your rigid strip lights to keep them at one place once these strips are installed.

Hippo buckle connectors can also help you to connect a single strip to a power supply.

Once your strips are connected through a hippo buckle connector, you can power them easily through a single source.

10.    How Can You Select An Appropriate LED Power Supply?

Selecting an appropriate LED power supply is not a difficult task.

You can easily achieve the best selection of an LED power supply by following a few easy steps.

All you need to do is to multiply the total wattage by 1.2.

Once you are done with this step, you can easily decide which power supply should be selected for your LED strips.

For example, you have six amps of a LED rigid strip light bar.

You will multiply six by 12 volts.

You will get 72 watts.

It means that system wattage is 72.

Now according to the rule, you have to multiply 72 by 1.2.

It will give you 86.4 watts.

A 90-watt or a higher power supply would be enough for this.

11.    How To Power 12V Rigid LED Strip Light?

In order to power a 12V rigid LED strip light, you will have to select a perfect power supply.

First of all, you will have to check if your product is working properly or not.

If you have completed this step, then the next step is to install your LED strip properly according to instructions.

Once it is installed successfully, you will connect it to the power supply.

Here is the video that can help you to know the process of connecting your rigid LED strip to the power supply :



12.    How Much Power Is Required For An LED Rigid Strip?

The power required for your LED rigid strip is basically dependent upon specific criteria.

This criteria explains that the power of your LED rigid strip should be 20% less than the rated wattage of the power supply.

For example, you buy a rigid LED strip.

It needs 80 watts of power to run.

Now the power supply that you will require for your rigid strip should be 96 watts at least.

It is very interesting to know that the best rigid LED strip is always capable of providing four watts per foot or more.

13.    Can LED Bar Lighting Strip Catch On Fire?

It is a very rare case that an LED bar lighting strip can catch fire.

LED bar lighting strips are considered as perfect to use for a long period of time.

In case you don’t get a better of your rigid bar lighting strip, it may lead to a disaster.

It may catch fire if you don’t buy your LED bar lighting strip from the best manufacturer.

A low-quality LED bar lighting can catch fire if these are turned on for a long period of time.

Otherwise, it can be turned on for hours without catching fire.

14.    Is it Possible to Use LED Strip Bars without a Controller?

Yes. You can easily utilize your LED strip bars without a controller.

It can happen only when you are providing the correct voltage as well as DC current to your LED strip bars.

The right way to provide the correct voltage as well as DC current to the LED strip bars is that you provide them to each of the three legs possessed by your LED strip bars.

At the same time, you cannot control the witness of your LED strip bars.

This whiteness property will appear due to the spectral emission of your LED strip bars but it will be working for you anyway.

15.    Is it Possible To Control Multiple Rigid LED Strips With One Remote? If Yes, How?

Yes. It is completely possible to control more than one rigid LED strip with only one remote.

Remotes are well-known devices for controlling more than one receiver.

You require a code matching process for this purpose.

Once you have matched the code, it will become easier for you to control your multiple rigid LED strips with a single remote.

Now, in  order to match the code with your remote, you will have the following steps to follow :

      1. You will be plugging your multiple rigid LED strips, your given power supply as well as a receiver with your remote.
      2. Once you have done the first step, now you have to hold the “on” button as long as it causes a flash of your rigid LED strips. It will be held only for five seconds.

Once the flash is turned on, it will let you know that the remote has successfully matched the code.

It will start working in this way.

Now, if you want to match it with multiple receivers, you have to repeat this step every time you want to match it.

This is the process that your multiple rigid LED strips are being controlled through a single remote.

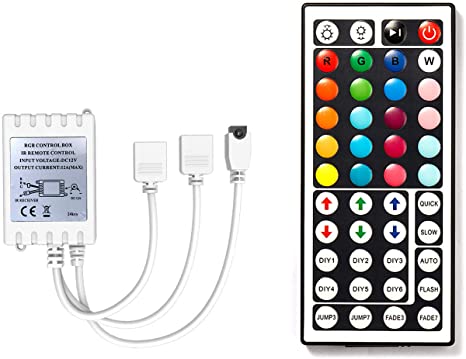

Can You control multiple LED strips with a single remoteControlling Rigid Strips Through single Remote

16.    How Bright Can My Rigid LED Light Strip Be?

The brightness of a Rigid LED strip varies depending upon the purpose for which you will be using your LED strip light.

There will be times when you will be wanting more brightness of your rigid LED strips. At the same time, there can be events when you will want low brightness.

Suppose you need rigid LED strip lighting for accent lighting purposes, You will not require anything more brighter than 200 lumens per foot.

In the end, it only depends upon your preference of using rigid strip lights.

17.    What Is The Process To Install My Rigid Strip Bar?

Here is an easy tutorial to follow for installing your rigid strip bar :

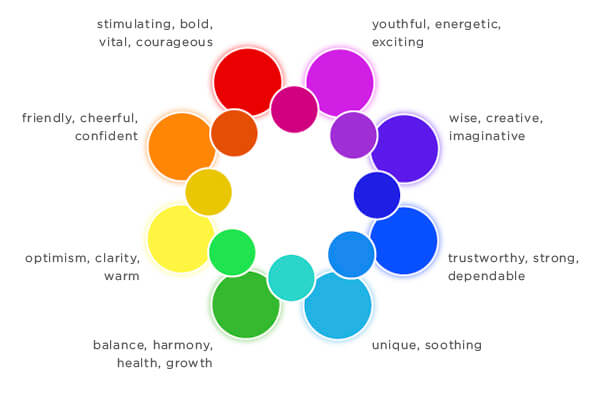

18.    Which Color Is Best For My Rigid Strip Bar?

Rigid strip bars don’t have a single color.

It possesses so many colors.

Different colors correspond to different properties.

But in the end, it all depends upon your choice.

Once you know the properties of different colors, it will become easy for you to recognize the best color for you.

Suppose you want to buy a color that can be best for your blood flow, then you should prefer a blue color.

Blue color is highly considered as a healing color.

It is also known for increasing the blood flow rate in living organisms.

At the same time, blue is also known to be sensitive for your skin.

It is very helpful if you want to get rid of pain.

Blue is a highly recommended color to promote the healing process.

On the other hand, if you want a calm color that should also convey soothing, hope and healing, then you should go for a green color.

It is one of those colors that are visible and sensitive to human eyes.

+

Colors of LED Strip LightsColors of Rigid LED Strip

19.    How Much An LED Rigid Strip Can Cost?

Cost of an LED rigid strip can be varying depending upon so many factors.

Therefore, you cannot say that LED rigid strips have the same cost for all qualities.

When you will go for a better quality of an LED rigid strip, then it will cost you higher.

You should always prefer a high quality LED rigid strip to have better performance.

On the other hand, if you buy your LED rigid strip from a low-guaranteed manufacturer, then it is obvious that it will have a low cost.

On average, it has been estimated that a better quality LED rigid strip can cost you a price between $3 to $10 per meter.

The cost of your LED rigid strip will also depend upon the length and size that you will be choosing for your strip.

Having a long length will have higher price as compared to the LED rigid strip with a smaller length.

20.    Which Transformer Is Required For LED Rigid Strip?

In order to choose a better transformer for your LED rigid strip, you will have to consider a few things before buying a perfect transformer.

The most important thing to consider while purchasing a transformer is to know about the power required by your LED rigid strip.

The next thing that makes sense while purchasing a power supply for your LED rigid strip is that you should also know the total length of your LED rigid strip.

Here is the perfect video that can guide you in purchasing a best transformer for your LED rigid strip :



21.    Can I Leave A 12v Rigid LED Strip Light On All Night?

The 12V LED rigid strip light bars is perfect to be turned on all night.

It is one of the biggest advantages of LED strip lights that you can easily turn them on for 24 hours.

There is no restriction over the 12V rigid LED strip light to be turned on except for the few reasons.

This is because of the reality that they consume a lower power.

Rigid LED strips also require a low voltage.

Therefore, you can turn them on all night.

If you get bad quality of a 12V rigid LED strip light from a low-guaranteed manufacturer, there is a possibility that these rigid LED strips catch fire.

Once they catch fire, it may not allow you to be turned for a long period of time.

Buying your 12V rigid LED strip from a high-quality manufacturer can prove it to be a truly long-lasting strip.

22.    Can A 12V Rigid LED Strip Light Give You Cancer?

No. There is no such reality behind the myth that a 12V rigid LED strip can give you cancer.

These strips are actually more safe to use for any purpose you want.

There are no cases of cancer caused by a 12V rigid LED strip light.

However, it has been reported by few researchers that exposure to blue light for a long period of time can cause you cancer.

Cancers caused by blue light include breast cancer and prostate.

At the same time, it has been observed that these kinds of cancers are hormone-related cancers.

Only when the hormones of a person are not working properly, then it may lead to cancer.

Therefore, no one can say that a 12V rigid LED strip light gives you cancer.

As it has been observed that these lights don’t even produce ultraviolet rays, so there is no possibility of causing cancer through a 12V rigid LED strip.

23.    How Many Amps Are Required For The 12V Rigid LED Strip Light?

You can find out the power consumption of any LED strip including a 12V rigid LED strip through a very simple process. One main factor in finding the power consumption can be the length of a 12V rigid LED strip. However there is short video tutorial that can guide you about finding the power consumption  of your 12V rigid LED strip :



24.    Is It Possible To Stick A 12V Rigid LED Strip Light To The TV?

Yes. It is obviously possible to stick your 12V rigid LED strip to the TV.

LED strip lights are popular to be used for any purpose you want.

It depends upon the quality of the LED strip you choose.

It depends upon the factor that it is flexible or rigid.

You can easily use your rigid strip bar for any purpose.

The main thing to keep in mind is that you can only use them for regular places.

You can’t use your rigid strip light for irregular places.

Also, you cannot bend your rigid strip light if there is any irregular place.

This is the disadvantage of a rigid LED strip that you can only use it for regular and straight places.

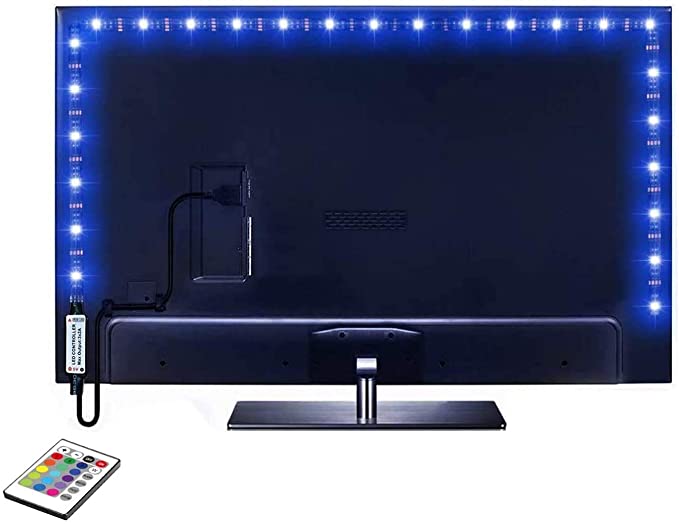

Sticking the Rigid Strip to TVSticking Rigid LED Strip to TV

25.    How Long Can rigid led light strips stay on?

Rigid LED strips are ideal to be turned on 24 hours.

You can use them for a long period of time as long as the quality of the rigid LED light strips is good.

It is because rigid LED strip lights are not harmful in any way.

These strips are easy to use.

Moreover, LED rigid strip light kits can be used at a low power supply.

Rigid LED strip lights don’t produce too much heat output when turned on for a long period of time.

This is the main reason that these strips can stay on for 24 hours.

26.    What is the best rigid led light strip?

The best quality of the LED rigid strip lights kit depends upon the brand of the LED strip.

If you buy your rigid LED strip from the best brand manufacturer, then it must be the best rigid LED light strip.

There are too many brands for best-LED strips, few of them are named as under.

You can buy any of them to make sure that these rigid LED strips work as the best rigid LED strips for you.

  1. Govee Alexa Led Strip Lights
  2. L8star LED Colour Changing Rope 32.8ft
  3. L8star Colour Changing Rope Lights
  4. DAYBETTER Led Strip Lights
  5. MINGER LED Strip Lights
  6. PANGTON VILLA USB LED TV Backlight Kit
  7. MINGER RGBIC LED Strip Light with App Control
  8. Tenmiro Ultra Long RGB 5050 Color Changing LED Light Strips Kit
  9. Phopollo LED Strip Lights
  10. Nexillumi LED Strip Lights
  11. BIHRTC LED Strip Lights
  12. RaThun Led Strip Lights Kit
  13. DAY BETTER Led Strip Lights
  14. Govee Smart WiFi LED Strip Lights

27.    What Wire Can You Use For Your Rigid LED Light Strip?

You can select the wire for your rigid LED light strip based on the color that you will be choosing for your rigid LED light strip.

It works in a way that if you are intending to choose a single colored rigid LED light strip, then it must be using two-conductor wire.

On the other hand, if you are using an RGB rigid LED light strip, then you will need four conductors wire.

Selecting a wire for your LED rigid strip lights kit may also depend upon the length of your strip.

28.    How Do The LED Strip Bars Are Connected To Mains?

You can take help through this tutorial in order to get a better understanding of connecting the LED strip bars to mains :



29.    Where Should I Place The LED Bar Lighting Strips In A Room?

You can place your LED bar lighting strip anywhere in the room.

In the end, all that really matters is that it will improve the space appearance in your room.

You can easily use your LED bar lighting strips behind a TV.

Also, you can use them to fit in the ceiling as well as drawers and cupboards.

Fixing your LEDE bar lighting strips anywhere in the room will enhance your mood as well.

Working in such a beautiful environment may also increase your productivity level.

When you will fit the LED bar lighting strip behind any object, it will cause the object to appear more beautiful.

It will also hide the appearance of tiny and shiny dots inside the strip rather than creating a much better appearance.

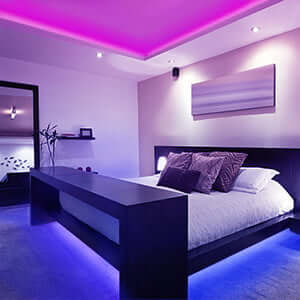

Using Rigid LED strip in My RoomUsing Rigid LED Strips in my Room

30.    How Can You Connect A Rigid LED Strip To A 12V Battery?

It is a very easy process to connect your rigid LED strip to a 12V battery.

All you have to do is to follow a few easy steps.

First of all, turn on the 12V output by turning on the power button which is fixed on your battery.

The next step is that you will be plugging one end of your DC cable into the DC output of your battery.

Now, you will connect the other side of your rigid LED strip to the barrel jack that lies at the end of the strip.

This will be the simple process that you will be following to connect your LED rigid strip lights kit to a 12V battery.

31.    Is It Possible To Power A 12V Rigid Strip Light With A USB?

Yes. It is possible to power your 12V rigid strip light with a USB source.

You can achieve it on the basis of few requirements.

It should be made clear in the start that the USB port only consists of 5 volts.

On the other hand, a rigid strip light requires 12 volts.

Now if you want to connect a 5 volts USB to a 12V rigid strip light to power it, you will buy a step-up DC-to-DC boost transformer circuit.

It will allow you to step up the power of USB from 1.5 volts to 24 volts or 32 volts.

This will be the process of boosting the power of your USB.

Once the power is boosted, now you can easily use it to power a 12V rigid strip light.

32.    Which Factors Should I Consider When Soldering and Clipping a LED Rigid Strip Lights Kit?

One of the most important things that you need to notice is the kind of LED strip that you are using for your lighting purpose.

If the LED strip that you are using, is a rigid LED strip, then it may be very disappointing to know that you can solder it.

There is no way to solder a rigid LED strip because of the rigidity factor that lies in a rigid LED strip.

Soldering and clipping can only be applied if the LED strip you are using is flexible.

33.    How Can You Differentiate Between a Rigid Strip Bar and a Flexible Strip Light?

It is a quite easy task to differentiate between a rigid strip bar and a flexible strip light.

You can tell the difference by holding both the strips in your hand.

A LED rigid strip light bar can not bend into whatever position you want.

On the other hand, a flexible LED strip is very easy to move and bend.

A rigid LED strip cannot be cut from anywhere you want.

On the other hand, a flexible LED strip can be cut easily.

A rigid LED strip cannot be used at irregular places while a flexible LED strip is much easier to be used at irregular places.

Flexible VS Rigid LED stripFlexible VS Rigid Strip

Send Your Inquiry Today
