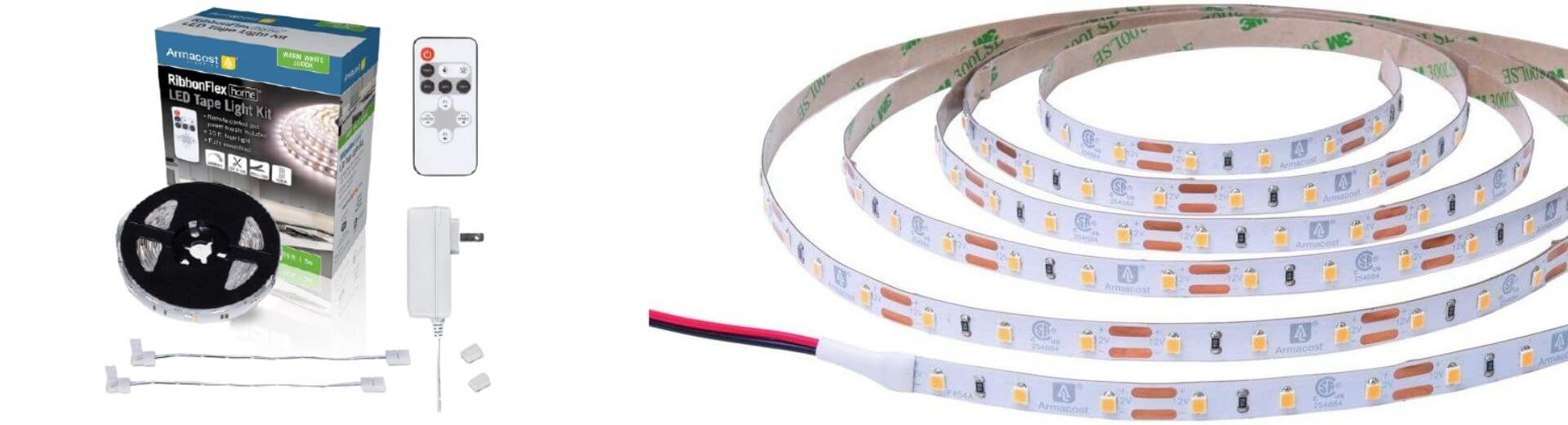

The Best Manufacturer of LED Tape Under Cabinet Lighting in China

LED tape under cabinet lighting has come to replace the fluorescent version. Cabinet lighting creates an extra touch of beauty and class to indoor spaces. The warm or daylight white color of the under cabinet lighting gives room for the end-users to switch between both color tones. The LED tape light is fixable, comes with an adhesive to fix the strip firmly to any surface. The brightness of the LED coupled with a CRI of over 80 makes it the perfect under cabinet LED tape.

As a wholesaler, SDIP welcomes you to join the long list of bulk lighting buyers. We sell in 100, 1000, and more pieces. You can as well request specialized or custom designs or sizes based on the need of end-users or the project on hand.

Contact SDIP to purchase the best-LED tape under cabinet lighting

Best LED Tape Lights For Under Cabinet

Dimmable Under Cabinet LED Tape Lighting




Under Cabinet Lighting Tape

LED Tape Under Cabinet Lighting





Under Cabinet Lighting Tape LED






Under Cabinet LED Tape




The Best Supplier of LED Tape Under Cabinet Lighting in Bulk



SDIP sells the best tape lights using high-quality LED bulbs. The LEDs are crystal clear and designed to illuminate brightly. Every tape is safe and eco-friendly and an ideal option to replace fluorescent cabinet lighting. You should also know that this dimmable under-cabinet LED tape lighting can switch between brightness levels. Each tape comes with an adhesive body and not screws. It makes attachment to both smooth and irregular surfaces easy and simple.

However, for large-scale installation, you can request our team of field engineers. Our team provides you with the layout, design, lighting effect, programming, and debugging. All are based on LedEdit or Madrix software platforms services. The engineers propose ideas regarding lighting effect, design, programming, and onsite installation.

Note that the LED tape under cabinet lighting is designed in low voltage for safety. It comes as a 12v tape with a heat dissipation double-sided copper body.

With the remote control or connected mobile device, the under cabinet lighting tape is dimmable and synchronizes with sound. It enables users to set a timer for automatic on/off. A motion sensor and rechargeable batteries give it increased functionality alongside bright lumens. Added to the lightweight design, the under cabinet lighting tape consumes less energy and it’s durable.

Model  SDIP-F5V-30L-30LED-W-WS2812 SDIP-F5V-60L-60LED-W-WS2812  SDIP-F5V-144L-144LED-W-WS2812
Voltage: DC5V DC5V DC5V
Current: 0.06A/LED 0.06A/LED 0.06A/LED
Max Power: 9w/m 18w/m 43.2w/m
IC Type: Built-in Built-in Built-in
IC: WS2812B WS2812B WS2812B
IC Quantity: 30 IC/meter 60 IC/meter 144 IC/meter
LED Type: SMD5050 SMD5050 SMD5050
LED Quantity: 30 LEDs/meter 60 LEDs/meter 144 LEDs/meter
LED Color: RGB RGB RGB
LED Interval: 33.3mm 16.6mm 16.6mm
Cut Size: 1 x LED 1 x LED 1 x LED
LED Lifespan: 50,000hrs 50,000hrs 50,000hrs
PCB Width: 10mm 10mm 10mm
FPCB Thickness: 3A copper 3A copper 3A copper
PCB: Double-sided Flexible PCB Double-sided Flexible PCB Double-sided Flexible PCB
FPCB Color: White/Black White/Black White/Black
Channel Order: RGB RGB RGB
Gray Scale: 256 256 256
IP rate: IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68
Working Temp: -40°~ 70° -40°~ 70° -40°~ 70°
Roll length: 5m/Roll 5m/Roll 5m/Roll
Package: Anti-static Aluminum Foil Bag Anti-static Aluminum Foil Bag Anti-static Aluminum Foil Bag

Model  SDIP-F5V-30L-30LED-W-WS2813​ SDIP-F5V-60L-60LED-W-WS2813 SDIP-F5V-144L-144LED-W-WS2813
Voltage: DC5V DC5V DC5V
Current: 0.06A/LED 0.06A/LED 0.06A/LED
Max Power: 9w/m 18w/m 43.2w/m
IC Type: Built-in Built-in Built-in
IC: WS2813 WS2813 WS2813
IC Quantity: 30 IC/meter 60 IC/meter 144 IC/meter
LED Type: SMD5050 SMD5050 SMD5050
LED Quantity: 30 LEDs/meter 60 LEDs/meter 144 LEDs/meter
LED Color: RGB RGB RGB
LED Interval: 33.3mm 16.6mm 16.6mm
Cut Size: 1 x LED 1 x LED 1 x LED
LED Lifespan: 50,000hrs 50,000hrs 50,000hrs
PCB Width: 10mm 10mm 10mm
FPCB Thickness: 3A copper 3A copper 3A copper
PCB: Double-sided Flexible PCB Double-sided Flexible PCB Double-sided Flexible PCB
FPCB Color: White/Black White/Black White/Black
Channel Order: RGB RGB RGB
Gray Scale: 256 256 256
IP rate: IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68
Working Temp: -40°~ 70° -40°~ 70° -40°~ 70°
Roll length: 5m/Roll 5m/Roll 5m/Roll
Package: Anti-static Aluminum Foil Bag Anti-static Aluminum Foil Bag Anti-static Aluminum Foil Bag

Model SDIP-F12V-30L-30LED-W-WS2815 F12V-60L-60LED-W-WS2815
Voltage: DC12V DC12V
Current: 0.013A/LED 0.013A/LED
Max Power: 4.68w/m 9.36w/m
IC Type: Built-in Built-in
IC: WS2815 WS2815
IC Quantity: 30 IC/meter 60 IC/meter
LED Type: SMD5050 SMD5050
LED Quantity: 30 LEDs/meter 60 LEDs/meter
LED Color: RGB RGB
LED Interval: 33.3mm 16.6mm
Cut Size: 1 x LED 1 x LED
LED Lifespan: 50,000hrs 50,000hrs
PCB Width: 10mm 10mm
FPCB Thickness: 3A copper 3A copper
PCB: Double-sided Flexible PCB Double-sided Flexible PCB
FPCB Color: White/Black White/Black
Channel Order: RGB RGB
Gray Scale: 256 256
IP rate: IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68
Working Temp: -40°~ 70° -40°~ 70°
Roll length: 5m/Roll 5m/Roll
Package: Anti-static Aluminum Foil Bag Anti-static Aluminum Foil Bag

Under Cabinet LED Tape Related Products



Power Supply For LED Tape Under Cabinet Lighting

Driver For LED Tape Under Cabinet Lighting

LED Controller for under cabinet lighting tape

The Industry Leading Distributor of the Best Led Tape Lights For Under Cabinet



You are at the center of our lighting products, we put your interest first to give you top quality in products and delivery. Our delivery system beats the average industry timeline. It’s flexible, fast, and accurate. As a wholesaler or contractor, you can fast track your delivery of the under cabinet lighting tape to meet the project schedule.

You can get up to a 12-18 months warranty on the lighting. Above all, as you purchase the LED tape under cabinet lighting, you are assured of good prices at all times. With our experience and research at SDIP, we keep manufacturing the best LED tape under cabinet lighting. Our LED tape under cabinet lighting has the UL marking and is certified by ROHS &CE.

contact us today to get a quote.



LED Tape Under Cabinet Lighting | The Ultimate FAQ Guide



Introduction



Want to renovate your kitchen and make it look cozy at all times?

In that case, getting LED tape under cabinet lighting is the best solution for you.

It will provide optimal lighting at the countertops while making sure you get enough brightness at the right places.

Moreover, you can also leave it on throughout the night without any worries.

If you are starting to get curious about it, then our ultimate FAQ guide is here to answer all your questions.



Table of Contents



  1. What Is LED Tape Under Cabinet Lighting?
  2. Where Should I Place My Under Cabinet Lighting Tape?
  3. Is It Worth Getting LED Tape Under Cabinet Lighting?
  4. What Are The Best LED Tape Lights For Under Cabinet?
  5. Why Is My LED Tape Under Cabinet Lighting Burning Out So Fast?
  6. How Do I Maintain My LED Tape Under Cabinet Lighting?
  7. Can I Repair My LED Tape Under Cabinet Lighting?
  8. How Do I Connect The Under Cabinet LED Tapes To The Mains?
  9. How Do I Install The Under Cabinet LED Tapes?
  10. How Do I Hide The Wires Of The Under Cabinet Lighting Tapes?
  11. How Do I Hide The Power Supply Of The Under Cabinet LED Lighting Tape?
  12. Will My LED Tape Under Cabinet Lighting Attract Bugs?
  13. Can I Leave My LED Tape Under Cabinet Lighting Turned On Throughout The Night?
  14. How Much Power Will My LED Tape Under Cabinet Lighting Require?
  15. How Much Luminosity Will Under Cabinet Lighting Tapes Produce?
  16. How Much Volts Do Under Cabinet LED Tapes Need?
  17. What Colour Temperatures Do Under Cabinet LED Tapes Offer?
  18. Can I Connect Under Cabinet Lighting Tapes Of Different Colours Together?
  19. Are Dimmable Under Cabinet LED Tape Lighting Available?
  20. How Do I Use A Dimmable Under Cabinet LED Tape Lighting?
  21. What Are The Advantages Of Dimmable Under Cabinet LED Tape Lighting?
  22. Are LED Tape Under Cabinet Lighting Better Than Their Fluorescent And Incandescent Versions?
  23. Can I Import LED Tape Under Cabinet Lighting From China?
  24. Can Under Cabinet Lighting Tapes Damage My Eyesight?
  25. Why Are My Under Cabinet LED Tapes Flickering?

1. What Is LED Tape Under Cabinet Lighting?

LED tape under cabinet lighting is very popular nowadays and that is bound to make you curious regarding what they are.

Best LED tape lights for under cabinet in kitchenBest LED tape lights for under cabinet in kitchen

Well, first of all, they are alternatively known as LED strip lights.

The lights are basically circuit boards themselves and are very flexible too.

On the front of the boards, you will find surface mounted LEDs that emit light.

And they come with an adhesive backing.

These properties of the light allows them to provide top-notch lighting under cabinets – making them a great choice for kitchens.

They are often known to be useful for decorative purposes mostly but you can also use them as task lighting – brightening up the entire space.

And you will find the best quality ones in SDIP Light.



2. Where Should I Place My Under Cabinet Lighting Tape?

The task of placing your LED tapes under the cabinets can be quite confusing.

But the spot can be quite easily found.

Basically, you would want to place it in a spot that is not visible.

But it needs to provide sufficient luminosity around the cabinet space.

Hence, you should place it closest to the wall.

It should be close to where the cabinet touches the wall; in that way, the wire will be out of sight but you will also get the brightness that you wanted.



3. Is It Worth Getting LED Tape Under Cabinet Lighting?

Yes; getting LED tape under cabinet lighting is a decision you will never regret.

Worthy LED tape lightingWorthy LED tape lighting

Why? Not only will it save your electricity bills in the long run, but you will also be able to illuminate the countertops without having to take care of the entire room.

It is both efficient and effective, which will save most of your effort as well.

Not to mention, installing it is also quite effortless and you will be getting long-term services.

So the money that you will spend on it will be totally worth it.



4. What Are The Best LED Tape Lights For Under Cabinet?

There are a lot of strip lights that will claim to be the best LED tape lights for the under cabinet.

However, the one that would be the best for you depends on your requirements and preferences.

In this case, you need to look at quality as well as durability.

Furthermore, features such as the colour, luminosity and such are also important.

Under cabinet LED tapes that adheres to all that you are looking for would be the best LED tape lights for under cabinet for you.



5. Why Is My LED Tape Under Cabinet Lighting Burning Out So Fast?

Under cabinet lighting tapes are not usually subjected to burning out because they are built to be resilient.

LED strip lights burning out LED strip lights burning out

And there are also ways to learn if they are burnt out or not.

However, some of the reasons for this to occur can be:

  • Low quality LED tapes
  • Usage of high voltage without a resistor
  • The connection with bad contacts and such
  • Using incompatible dimmer switches for dimmable under cabinet LED tape lighting
  • Overheating might occur too if you are using the wrong power connection

The first way to steer clear of all these problems is to get high-quality LED strip lights, which are available in SDIP Light.



6. How Do I Maintain My LED Tape Under Cabinet Lighting?

There are various things that you need to keep in mind if you want to make your under cabinet LED tapes last longer.

The most essential task is to keep the tapes away from dust or too much moisture (unless they are waterproof).

This also applies to its power supply.

On the other hand, you also need to make sure the supply is not overheating to avoid power failures.

Basically, keeping check of the power limits and keeping the strips clean are the keys.

For further details on how to avoid LED tape fails, take a look at this video.



7. Can I Repair My LED Tape Under Cabinet Lighting?

Yes; but the easiest method would be to consult a professional.

If you want to do it by yourself, then you need to get to the root of the problem.

Start by testing each of the parts separately with other devices.

Also check the power supply unit to make sure that it is working properly.

You can easily cut off the part of the tape that is defective and then use the rest of the part.

Damaged under cabinet LED tapeDamaged under cabinet LED tape

Or you can just replace the power supply unit if that is damaged.



8. How Do I Connect The Under Cabinet LED Tapes To The Mains?

There are some essentials that you will need to get to connect the tapes to the mains.

At first, you need a connector wire and then you will require a driver.

But in both cases, you will have to make sure they are compatible with the tape itself.

Once you have made sure of that, you will need to connect one end of the wire with the tape and then connect the other end with the driver.

After connecting them properly, you have to plug the driver to the main power supply.

Turn the power on to check if it has been connected properly.



9. How Do I Install The Under Cabinet LED Tapes?

Once you have connected the LED tape under cabinet lighting with the main power supply, installing the lights becomes very easy.

Installing LED tape under cabinet lightingInstalling LED tape under cabinet lighting

Since the tapes come with an adhesive backing, all you will have to do is peel off the layer to expose the adhesive part.

Clean the surface of the area you will be attaching the tapes to.

And make sure they are free from any sort of dust or moisture altogether.

If the surface is all set, then you can slowly stick the tape to it and you are done!



10. How Do I Hide The Wires Of The Under Cabinet Lighting Tapes?

Hiding the wires of the under cabinet lighting tapes is much simpler than you perceive it to be.

For that, all you will have to do is position the tapes properly and trim them in accordance with the cabinet measurements.

For that, you will need to measure the length of the cabinet, and make sure the power outlet is not too far away from the cabinet.

If it is, then you will have to use other methods, such as the usage of wall mouldings, etc.

Nevertheless, hiding the wires is not a difficult task and with LED strips from SDIP Light, the process becomes even easier.



11. How Do I Hide The Power Supply Of The Under Cabinet LED Lighting Tape?

Hiding the power adapter or supply of the under cabinet LED lighting is a rather effortless task.

Hiding power supply of under cabinet LED tapesHiding power supply of under cabinet LED tapes

The best way to execute that is to find a power supply outlet that is in a corner, so it is not visible instantly or that apparent.

You can also use other decorative accessories to hide the under cabinet LED tapes.

Or you can also build drywall to run the power adapter and cord behind it.



12. Will My LED Tape Under Cabinet Lighting Attract Bugs?

Some under cabinet lighting tapes attract bugs whereas others do not.

And this depends on the colour of the strip lights mostly.

UV, blue and green lights consist of shorter wavelengths and so, they tend to attract bugs.

However, red, yellow and orange lights have longer wavelengths and so they do not attract bugs.

Hence, you can choose the colour of your LED strips keeping that in mind.



13. Can I Leave My LED Tape Under Cabinet Lighting Turned On Throughout The Night?

One of the biggest advantages of LED tape under cabinet lighting is that they do not generate as much heat as their incandescent or fluorescent counterparts.

In comparison, the heat generated is much less.

LED strips on throughout the nightLED strips on throughout the night

And hence, even if you need to keep your LED strips on throughout the night, it does not pose any great risk to your safety.

In fact, there are no chances of it starting any sort of fire or displaying any other electrical problems.



14. How Much Power Will My LED Tape Under Cabinet Lighting Require?

The amount of power that your LED tape under cabinet lighting will require depends on the length of it.

If we are considering foot wise, then it will need about 4 watt per foot.

If we are considering meter wise, then your strips will require 14-15 meter per watt.

So if you have an 8 foot LED tape, it will use (4 x 8) 32 watts.

And if you have a 2 meter LED tape, then it will use approximately (15 x 2) 30 watts.



15. How Much Luminosity Will Under Cabinet Lighting Tapes Produce?

Again, the amount of luminosity provided by your under cabinet lighting tape depends on the length of it.

Luminosity of LED stripsLuminosity of LED strips

LED strips are said to produce 450 lumens per foot.

And 1500 lumens per meter.

So with a 4 foot LED tape, you will get a luminosity of 1800 lumens.

And with a 2 meter LED tape, you will get a luminosity of 3000 lumens.

The amount of lumens produced may vary depending on the quality of your LED tapes as well.

And to make sure there are no compromises in the quality, get your desired LED tape from SDIP Light.



16. How Much Volts Do Under Cabinet LED Tapes Need?

That depends on whether your under cabinet LED tapes are AC or DC.

Alternating current can provide a variety of voltage options.

You can get LED strips with a rating of 120, 240 or at the highest – 277.

Whereas if you are choosing a DC LED tape under cabinet lighting, then you can choose between a voltage rating of 12-24 volts.

Most power outlets provide an alternating current and so, if your LED tapes require DC by any chance, then you will need a driver to convert AC to DC for it to run.



17. What Colour Temperatures Do Under Cabinet LED Tapes Offer?

If you get a good quality LED tape under cabinet lighting, then you can expect it to offer a wide range of colour temperatures.

And for that, you will have to inspect your LED strips beforehand to see what it really has to offer.

Colour temperatures of LED stripsColour temperatures of LED strips

Usually, you will find a range between 2700k-6100k; and it goes from warm to bright white.

2700k-3500k is a range that will offer a warm tone.

And so you can use it under cabinets if you are looking for a warm and cozy ambience with an interior that will complement it.

On the other hand, if you are looking for a brighter ambience and have a full-white interior, then going for a temperature between 4000k-6100k would be wiser.



18. Can I Connect Under Cabinet Lighting Tapes Of Different Colours Together?

Yes; you can connect under cabinet lighting tapes of different colours together.

Because two different under cabinet light tapes can be attached with one another.

For that, you will need connector clips that will make sure the strips are connected together properly – without any hassle.

These clips can also be used to connect the strips to the power supply and are readily available.

So acquiring them will not be very difficult either.

Just make sure you don’t connect more than two sets of strips together.

That is because it can give rise to more electrical issues and you wouldn’t want that.



19. Are Dimmable Under Cabinet LED Tape Lighting Available?

Yes; technically, dimmable under cabinet LED tape lighting is everywhere.

Dimmable under cabinet LED tape lighting Dimmable under cabinet LED tape lighting

You can effortlessly adjust the brightness of your strip lights because all of them are dimmable under-cabinet LED tape lighting.

With proper wiring and the usage of the right components, dimming them will be very easy.

Hence, you won’t even feel the need to look for them separately.

Because even a standard LED strip is dimmable with the proper connection and wiring.



20. How Do I Use A Dimmable Under Cabinet LED Tape Lighting?

Using dimmable under-cabinet LED tape lighting is as simple as using standard LED tapes.

Here’s a more comprehensive video on the installation of dimmable under-cabinet LED tape lighting.

And we will briefly explain the process right here.

  • Firstly, get a dimmer for your LED strips with proper functionality.
  • Connect the wires from the power supply to the dimmer.
  • Connect the wires from the LED strips to the dimmer unit and make sure they are all connected properly.
  • You will either have a remote or a knob on the dimmer unit.
  • You can use the knob/remote to control the power and voltage provided to the LED strips.
  • Test the dimmer a few times to make sure it works properly and is not defective.

Find the best dimmable under-cabinet LED tape lighting in SDIP Light.



21. What Are The Advantages Of Dimmable Under Cabinet LED Tape Lighting?

Dimmable under cabinet LED tape lighting comes with several advantages.

And we will get into them right here.

Dimmable under cabinet LED tape lighting advantagesDimmable under cabinet LED tape lighting advantages

First of all, you will get the exact ambiance you want by adjusting the brightness.

The energy spent will also be limited because the power levels will be adjusted in accordance with the changing brightness.

Therefore, you will have to take care of lower electricity bills over the course of using your LED strips.

The electric components will also tend to be cooler and so, your LED strips will have a longer lifespan.

And so, you won’t need to worry about replacing them anytime soon.

It will also provide you with greater flexibility and keep your mood right with proper lighting according to your preferences.



22. Are LED Tape Under Cabinet Lighting Better Than Their Fluorescent And Incandescent Versions?

LED tape under cabinet lighting is replacing fluorescent and incandescent lighting at a fast rate.

And there are several reasons behind that.

But one of the prime reasons is that LED under cabinet lighting tapes are much better than their incandescent and fluorescent counterparts.

LED strips are very efficient – even 50-90% more efficient than fluorescent and incandescents depending on the quality.

As a result, most, if not all, the electricity will be converted to light.

And hence, the light will require less power to generate more brightness.

On the other hand, LED strips generate much less heat than their fluorescent and incandescent versions.

They also tend to be safer because they contain no chemicals whatsoever.

Furthermore, you will have to spend less money and effort on maintaining LED strips.

And you won’t have to be very concerned about repairing them either.

So getting LED tape under cabinet lighting is a win-win situation for you from all aspects.



23. Can I Import LED Tape Under Cabinet Lighting From China?

As long as your country has no import restrictions when it comes to China, you can import under cabinet lighting tapes from China.

Importing under cabinet lighting tapes from ChinaImporting under cabinet lighting tapes from China

And the process is very easy.

First, you need to choose a reliable website and manufacturer to order from.

Then select the product that suits your budget the most.

While you are ordering, take a look at all the dues that you will have to clear and also choose a proper shipping method.

Don’t forget to prepare all the necessary documents and paperwork either.

Once you have followed all these steps, you can receive your LED strips.



24. Can Under Cabinet Lighting Tapes Damage My Eyesight?

LED light can have phototoxic effects on the eyes of people, which can cause irreversible damage to the retina.

However, the brightness produced by LED strip lights is often not enough to cause that much damage to anyone’s eyes.

Hence, you can rest assured.

For further safety, you wear safety goggles when you have to look at them directly.



25. Why Are My Under Cabinet LED Tapes Flickering?

Under-cabinet LED tapes can flicker quite often and it is very normal.

This often happens if the light output of the strips fluctuates.

So there is nothing for you to worry about.

However, if your strips are old and have been flickering quite frequently, then that is quite concerning.

In that case, you might want to check your strips along with their power supply.

If there are any signs of damage, then you might want to replace the damaged part immediately.



Conclusion

Now that you are aware of all the benefits that LED tape under cabinet lighting can offer, there is no need for you to wait or hesitate anymore.

Indulge yourself in one of the best and most aesthetic lighting solutions today – because, without it, you are missing out on a lot.

These lights are here to provide long-term advantages that will exceed your expectations with time.

So don’t delay any further, and get the best lighting solution out there already!

Send Your Inquiry Today
